SSR-獨立式安全開關-CAT.1
Position control for doors / casings on hazardous machinery
Contactless encoded electronic sensor with relay
Up to 8 zone differentiation codes
Safety contacts 2A / 250V
Level of performance without an external controller: PL = c
Level of performance with AWAX controller: up to PL = e
Contactless encoded electronic sensor with relay
Up to 8 zone differentiation codes
Safety contacts 2A / 250V
Level of performance without an external controller: PL = c
Level of performance with AWAX controller: up to PL = e
Differences between the products in the SRR range :
2SSR24BX :

2SSR24V :
3SSR24V :
4SSR24V:
5SSR24BX - 5SSR24BX US:
5SSR24P:
5SSR24S :
.Safety category without an external controller: 1
.Cycle before dangerous failure: B10d = 2,000,000 at 2A
.Max. activation distance 3SSR24V/5SSR24BX/5SSR24BX-US:8 mm, 2 mm hysteresis
.Max. activation distance 2SSR24V/2SSR24BX: 4 mm, 2 mm hysteresis
.Safety contacts/diagnostics 3SSR24V : 1 x NO 2A/250V / 1 x NF 2A/250V auxiliary
.Security contacts/diagnostics 5SSR24BX and 5SSR24BX-US : 2 x NO 2A/250V / 1 x PNP NF 250mA auxiliary (24V)
.Security contacts 2SSR24V: 2 x NO 2A/250V
.Security contacts 2SSR24BX : 1 x NO 2A/250V and 1 x NF 2A/250V
.Detection encoding 3SSR24V, 5SSR24BX/5SSR24BX-US: single inviolable code
.Detection encoding 2SSR24V and 2SSR24BX: 8 inviolable codes
.Indicators 2SSR24V, 2SSR24BX, 3SSR24V and 5SSR24BX : Red LED indicating code absence (not transmitter)
.Indicator 5SSR24BX-US : Two-color red/green LED
.Reset: automatic
.Attachment: 4 tamper-proof M4 screws (optional ref: BH4)
.Mounting position: 2 (double wall brackets)
.Matierial PA6: 2SSR24V, 2SSR24BX, 3SSR24V, 5SSR24BX, 5SSR24BX-MKT and 5SSR24BX-US

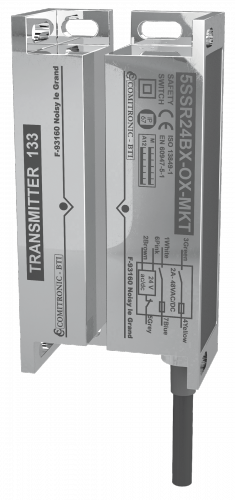

.Material INOX 316L mirror polished: 5SSR24BX-OX and 5SSR24BX-OX-MKT
.Electrical Connection: 3, 6, 12m cable or 50cm cord with M12 connector (UL20549 PUR) for5SSR24BX-OX and 5SSR24BX-OX-MKT
.Water resistance: IP 67/68 (PA6) or IP 69Kwith stainless steel - new generation
.Temperature: -25°C to +60°C
.Marking: PA6 pad printing + serial number, INOX316L laser engraving with mechanically punched serial number for permanent traceability
.Cycle before dangerous failure: B10d = 2,000,000 at 2A
.Max. activation distance 3SSR24V/5SSR24BX/5SSR24BX-US:8 mm, 2 mm hysteresis
.Max. activation distance 2SSR24V/2SSR24BX: 4 mm, 2 mm hysteresis
.Safety contacts/diagnostics 3SSR24V : 1 x NO 2A/250V / 1 x NF 2A/250V auxiliary
.Security contacts/diagnostics 5SSR24BX and 5SSR24BX-US : 2 x NO 2A/250V / 1 x PNP NF 250mA auxiliary (24V)
.Security contacts 2SSR24V: 2 x NO 2A/250V
.Security contacts 2SSR24BX : 1 x NO 2A/250V and 1 x NF 2A/250V
.Detection encoding 3SSR24V, 5SSR24BX/5SSR24BX-US: single inviolable code
.Detection encoding 2SSR24V and 2SSR24BX: 8 inviolable codes
.Indicators 2SSR24V, 2SSR24BX, 3SSR24V and 5SSR24BX : Red LED indicating code absence (not transmitter)
.Indicator 5SSR24BX-US : Two-color red/green LED
.Reset: automatic
.Attachment: 4 tamper-proof M4 screws (optional ref: BH4)
.Mounting position: 2 (double wall brackets)
.Matierial PA6: 2SSR24V, 2SSR24BX, 3SSR24V, 5SSR24BX, 5SSR24BX-MKT and 5SSR24BX-US
.Material INOX 316L mirror polished: 5SSR24BX-OX and 5SSR24BX-OX-MKT
.Electrical Connection: 3, 6, 12m cable or 50cm cord with M12 connector (UL20549 PUR) for5SSR24BX-OX and 5SSR24BX-OX-MKT
.Water resistance: IP 67/68 (PA6) or IP 69Kwith stainless steel - new generation
.Temperature: -25°C to +60°C
.Marking: PA6 pad printing + serial number, INOX316L laser engraving with mechanically punched serial number for permanent traceability
