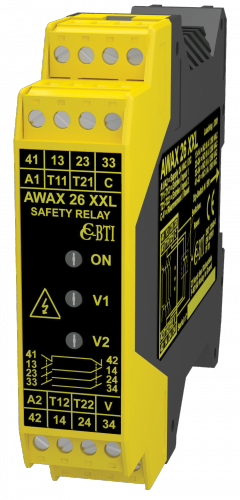

• AWAX 26XXL 安全繼電器

AWAX 26XXL 安全繼電器


Output contacts 8A/250V

Anti-gluing control of the reset button

Ultra-fast "DLC" short-circuit check : Short-circuit detection in 2 µs, self-resetting

Safety management in a compact 22.5 mm format

12V version for embedded applications

Performance level with AWAX controller: PLe

Safety category: 4

Safety Integrity Level: SIL 3

AWAX26XXL : Safety/diagnostic contacts: 3x NO 8A/250V redundant / 1x NF 8A/250V serial (XXL version) or parallel (XXLP version)

AWAX26XXLT6 : Safety/diagnostic contacts: 3x NO 6A/250V redundant / 1x NC 6A/250V redundant serial (XXL version) or parallel (XXLP version)

Time before dangerous failure: MTTFd = 415 years

Cycle before dangerous failure: B10d=100,000 at 5A

Risk duration: 20 ms max.

Cable severing protection: yes (opening of safety lines)

Short-circuit and overload protection: yes, using DLC (opening of safety lines and current limiting in contacts)

Reaction 2 µs ultrafast

Indicators: 3 LEDs for diagnostics

Reset: configurable by dip-switch (SR=Automatic, N=manual)

Mounting: symmetrical DIN 35mm rail on DIN 50022

Mounting: IP 20 electrical box

Electrical connection: Maximum 14 AWG (2.08 mm²) / 250V minimum

Temperature: -20°C to +60°C

Certification: TÜV Rheinland 01/205/5168/11

UL 508 / C22.2 no.14 C-UL-US listed 34CB (file E214209)
